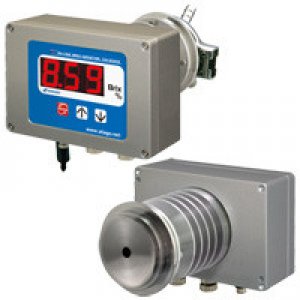

ATAGO CM-800α In-line Brix-Monitor

This new addition to the CM series is compatible with the PRM-100α fittings.
Fittings are available in a wide variety of shapes and sizes.
The accuracy is ±0.1% across the entire range of 0-80% Brix.

Specifications
Model CM-800α
Cat.No. 3564
Scale Brix [*1]
(Automatic Temperature Compensation according to the sample liquid)
Temperature
Measurement Range Brix : 0.0 to 80.0%
Temperature : 5 to 100°C
Resolution Brix : 0.01 or 0.1%
(with an option to display measurements between 0.00 and 9.99% to the 2nd decimal place)
Temperature : 1°C
Measurement Accuracy Brix : ±0.1%
Temperature : ±1°C
Temperature compensation range 5 to 100°C (Automatic Temperature Compensation)
Ambient Temperature 5 to 40°C
Indication Brix : -2.0 to 80.5%
Temperature : 0 to 130°C
Output (1) Recorder output : DC 4 to 20mA
(2) RS-232C output
Materials Prism : Sapphire
Prism stage : SUS316
Power Supply DC24V
International Protection Class IP64 Dust-tight and Protected against splashing water.
Included Accessories Power input cable (1m) [*2]
Dimensions & Weight 16×17×11cm, 2.4kg
(Main Unit only)
Power consumption 24VA
[*1] : Contact ATAGO if you are interested in using the CM-800α to measure other types of solution.
[*2] : The cable can be ordered to a custom length of up to 5m.
Options

* Calibration Certificate : Contact an ATAGO representative for details.

See here for fitting options.
