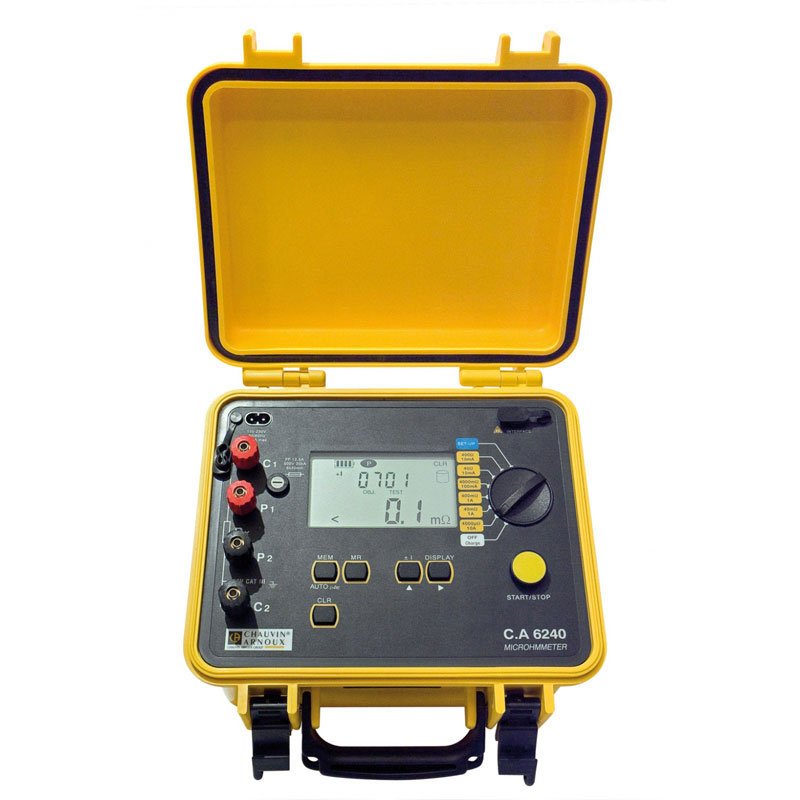

Chauvin Arnoux CA6240 10A Microhmmeter

10A Micro-ohmmeter
RUGGED AND LEAKPROOF, THE C.A 6240 IS A TOP-OF-THE-RANGE PRODUCT DESIGNED FOR ON-SITE, WORKSHOP OR LABORATORY USE

Ergonomic, lightweight and compact, Its wide LCD screen comprising 2 digital displays is particularly easy to read.

Chauvin Part No: P01143200

The C.A. 6240 allows quick detection of any deterioration between 2 contact points. This means it can be used for a very broad range of applications. The micro-ohmmeter provides reliable, accurate measurements due to its test current of up to 10 A.

Ergonomic, lightweight and compact. Its wide LCD screen comprising 2 digital displays is particularly easy to read. It includes indications intended to facilitate implementation and interpretation of the measurements.

Chauvin Arnoux CA6240 10A Microhmmeter Features

  • Broad measurement range 5µΩ to 400Ω.
  • Automatic measurement mode.
  • Test current: up to 10 A.
  • Current reversal.
  • Automatic 'on the fly' or manual recording mode.
  • Large backlit LCD display.
  • Connection: 4 screw terminals, 4mm in diameter.
  • Excellent 1 µΩ resolution.
  • Automatic power-off.
  • Power supply: NiMH rechargeable battery.
  • Leakproofing: IP53.
  • Data: optical / USB link.
  • Electrical safety: IEC 61010-1 / CAT III 50V.
  • Protection against accidental overloads up to 500 V.
  • Dimensions: 273 x 247 x 280mm.
  • Weight: 0.5kg.
  • Chauvin Arnoux C.A 6240 Warranty: 1 year.

Included Accessories:

Carry Bag, power lead 2m long, 1 set of 2 x 10 A Kelvin clamps with a 3m cable, optical / USB communication cable, Microhmview software, simplified CA6240 operating manual in 5 languages, C.A 6240 operating manual in 5 languages.
