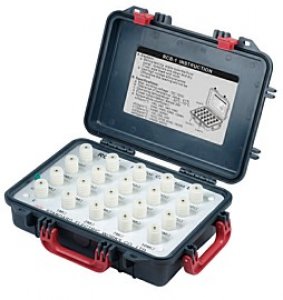

SEW0011B-RCB-1 INSULATION TEST DECADE RESISTANCE BOX-TEST UP TO 500GOHM

FEATURES
● The RCB-1 is used to verify and proof any High Voltage Insulation
   Testers. It can be utilized to calibrate all High Voltage Insulation
   Testers very accurately Analogs or Digitals.
● Some institutions and large industries requested their own calibrator
   too, therefore, SEW started manufacturing the RCB for special
   customers.

  SPECIFICATIONS


  Resistance ranges (Ω)   1M. 2M. 7M. 10M. 20M.
  30M. 50M. 100M. 200M.
  500M. 1G. 2G. 5G. 10G.
  20G. 50G. 100G. 200G.
  500G
  Resistance tolerances   ±1%(F)
  Tolerance  ± 25ppm/°C : 1MΩ. 2MΩ. 7MΩ. 10MΩ. 20MΩ. 30MΩ. 50MΩ. 100MΩ. 200MΩ. 500MΩ
 ± 100ppm/°C : 1GΩ. 2GΩ.
 ± 200ppm/°C : 5GΩ. 10GΩ. 20GΩ. 50GΩ. 100GΩ.
 ± 400ppm/°C : 200GΩ. 500GΩ
 ± 1000ppm/°C : 1TΩ
  Max. working voltage   DC 10kV
  Operating temperature   -30°C~75°C
  Power coefficient   Below 3W
  Connecting terminals   Binding Post : Resistance circuit and guard
  Dimensions   430(L) × 324(W) × 127(D)mm
  Weight   Approx. 5200g
