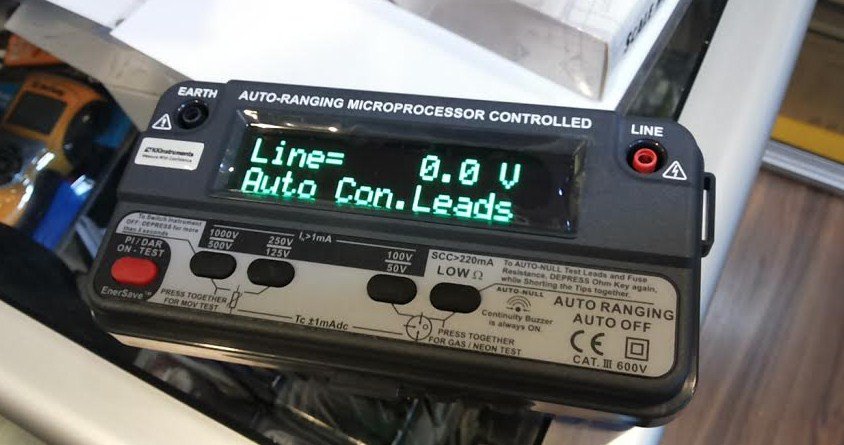

SEW0010B-OLED DISPLAY 6 RANGE 1kv Multifunction and Insulation Testers


High Contrast OLED display.
● Designed for viewing in the dark, for mining industry.
● Auto-range microprocessor-controlled.
● Automatic voltmeter AC/DC at Start/Reset.
● Battery test at switch ON/Reset.
● Safety voltmeter before each test.
● Auto-discharge on all tests and all ranges.
● Leads auto-null key.
● Test auto-stop.
● Smart hold and stop on voltmeter AC/DC.
● Ener-Save.
● Continuity short circuit >220mA.
● Continuity open circuit voltage of 5Vdc.
● Nominal voltage @ 1mA on all insulation ranges.
● Polarization index (PI).
● Dielectric Absorption Ration (DAR).
● BS 16 edition.


Insulation Resistance
Test voltage 50V / 100V / 125V / 250V / 500V /1000V
Measuring ranges 0.1M~400MΩ / 0.1M~800MΩ / 0.1M~1GΩ /
0.2M~2GΩ / 0.2M~4GΩ / 0.2M~8GΩ
Continuity
Range 0.01Ω~1999Ω
Voltmeter
AC V 0-700V
DC V 0-950V
PI Function ˇ
DAR Function ˇ
Metal Oxyde Varistor ˇ
Gas Arrester Voltage ˇ
