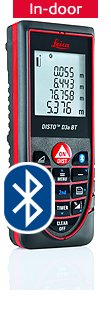

The Leica DISTO D3a BT is the perfect instrument for measuring and developing internal building plans in real time through Bluetooth direct to CAD software.
BLUETOOTH
The Leica DISTO D3a BT features integrated BLUETOOTH technology, measurement results can be accurately transferred via wireless link, error-free data transfer to PCs and pocket PCs and now Android tablets and Smart phones.
Free software
The delivery package contains the transfer software Leica DISTO Transfer – easy to install and with automatic updates. The AutoCAD plug-in additionally allows convenient planning and drawing with your AutoCAD software.
Precision at the torch of a button
The Leica DISTO D3a BT features a measuring accuracy of ±1mm with an enhanced measuring range of 100m. The Power Range Technology boosts the measuring performance, allowing long range measurements to be taken.
Tilt Sensor
The instrument's inbuilt tilt sensor quickly and simply determines tilts up to ± 45°. This will allow you to measure the angle of a slope or the angle of a corner in a room.
Smart Horizontal Mode
Thanks to the combination of distance and tilt measurements you can determine the horizontal distance absolutely precisely. At a touch of a bottom the indirect height can be also displayed.
|
|
Smart Horizontal Mode™ Thanks to the combination of distance and tilt measurements you can determine the horizontal distance precisely and simply. If you take a measurement at an inclination of ± 45°, the Leica DISTO™ D3a BT always calculates the shortest distance. So you can measure quickly and easily, even over the top of objects and people.
|
|
|
|
|
|
Multiple functions The Leica DISTO™ D3a BT can calculate rectangular and triangular areas, volumes, room dimensions and various types of Pythagoras functions. A time delay release and enough memory for up to 20 measurements round off the instrument's wide range of functions – a concept designed to make your work life easier.
|
|
|
|
|
|
Brilliant and clearly arranged display The results are displayed on the large (2”), clearly arranged and high contrast display. At the touch of a button, the display makes supplementary information available about the measurements, e.g. indirect height, room dimensions, angle information or room angles.
|
|
|
|
|
|
BLUETOOTH® With integrated BLUETOOTH® technology, measurement results can be wirelessly and accurately transferred to Pocket PCs and PCs. Thus you can easily process your data in Excel®, Word®, AutoCAD® and other programs.
|
|
|
|
|
|
Free software The delivery package contains the transfer software “Leica DISTO™ Transfer” – easy to install and with automatic updates. The AutoCAD® plug-in additionally allows convenient planning and drawing with your AutoCAD® software.
|
.
- http://ptd.leica-geosystems.com/common/shared/style/redsquare.gif); background-position: 0px 3px; background-repeat: no-repeat no-repeat;">Holster
- http://ptd.leica-geosystems.com/common/shared/style/redsquare.gif); background-position: 0px 3px; background-repeat: no-repeat no-repeat;">Hand loop
- http://ptd.leica-geosystems.com/common/shared/style/redsquare.gif); background-position: 0px 3px; background-repeat: no-repeat no-repeat;">2 AAA batteries
- http://ptd.leica-geosystems.com/common/shared/style/redsquare.gif); background-position: 0px 3px; background-repeat: no-repeat no-repeat;">Target plate
- http://ptd.leica-geosystems.com/common/shared/style/redsquare.gif); background-position: 0px 3px; background-repeat: no-repeat no-repeat;">CD with manual / safety instructions
- http://ptd.leica-geosystems.com/common/shared/style/redsquare.gif); background-position: 0px 3px; background-repeat: no-repeat no-repeat;">Producer certificate M in accordance with DIN 55350-18-4.2.2
- http://ptd.leica-geosystems.com/common/shared/style/redsquare.gif); background-position: 0px 3px; background-repeat: no-repeat no-repeat;">Quickstart guide
- http://ptd.leica-geosystems.com/common/shared/style/redsquare.gif); background-position: 0px 3px; background-repeat: no-repeat no-repeat;">CD with Leica DISTO™ Transfer for PC and PPC, AutoCAD® PlugIn
|
Features |
Your advantages |
Measuring range 0.05 to 100 m Typ. accuracy ± 1.0 mm |
Precise, quick and reliable measurements |
BLUETOOTH® |
Error-free and quick data transfer to Pocket PC or PC |
“Leica DISTOTM Transfer” software is included |
Easy transfer for further processing in Excel®, Word®, AutoCAD® or other Windows-based programs |
AutoCAD® plug-In |
Convenient drawing using your AutoCAD® software |
Smart Horizontal Mode ™ |
Determine precise horizontal distances at the press of a key |
Tilt sensor |
Measure angles up to ± 45° at the touch of a button |
Flip-out end-piece with automatic detection |
Reliable, trouble-free and error-free measurement from edges or out of corners
|
Pythagoras functions |
Indirect height and width measurements in inaccessible positions |
Room dimensions |
Values such as total wall length, wall and ceiling area are available at the touch of a button |
Stake out function |
Stake out equal or two different recurring distances |
Triangle function |
Determine the area of a many-cornered room efficiently |
