CIA354AW-INDUSTRIAL WIRELESS 30M 3.5" LCD STANDARD SOFT-METAL 5.5MM PROBE INSPECTION CAMERA-USA


OIL & SCRATCH RESISTANT

Oil- and scratch-resistant tempered glass not only protects the camera, but also maintains the high image resolution.

3.5" EXTRA WIDE VIEW & CLEAR TFT

3.5" Extra-wide view  and clear TFT, protected by oil and scratch resistant tempered glass.

4 SUPER WHITE HIGH-BRIGHTNESS LED

With 4 high-brightness LED (0~275Lux/4cm),every detail of your target will be illuminated for you.

WIRELESS TRANSFER

We can explode anywhere that we want more smoothly without the cable. We can sent the image to a big screen in 50M away.

Features:

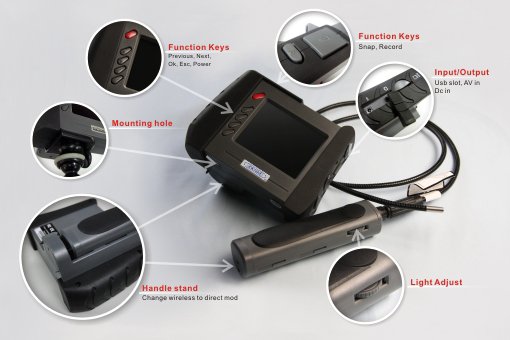

TWO HANDS MODE

You need not heading up or down in an uncomfortable position when checking some position  that higher or lower than our eye level. You can hold the console in a perfect height even though checking the undercarriage or the air-conditioner.

ONE HAND MODE

In some special working environment you need to remove the obstacle during manipulating the insert tube. At this moment, you can place the separable console on a stable platform, WICP can "give you a hand" then.

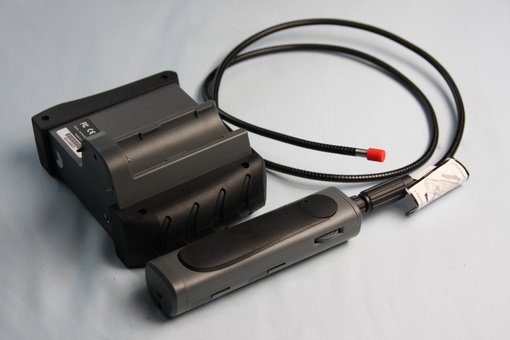

FREE HAND MODE

Signal will shift to physical circuit after handle inserted into the socket, but not the transfer in RF mode. It means WICP will not affect the others or been affected by the others. In addition, adjust the insert tube in a right angle, JAGN-6100 can work as a desktop enlarger.

LIGHT PATH ISOLATE

Stay high definition the image even in a harsh condition and reduce the stray light Easy to clean, Provide full protection for the tip, Upgrade the quality of the photo.







Automobiles (check of and repair of cylinders, mufflers, transmissions, linings, manifolds, frames, etc. )

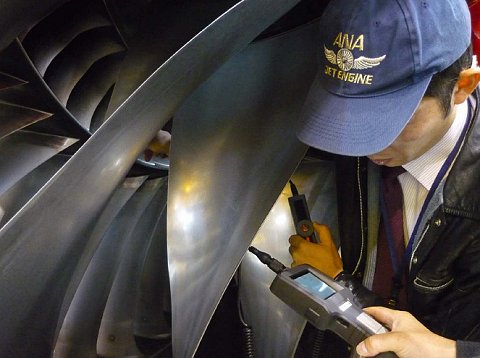

Aircrafts (Inspection and repair of engines, shafts, landing gears, turbines, etc.)

Ships (Inspection and repair engines, turbines, heat exchangers, pipe lines, etc.)

Railways (Inspection and repair for engine maintenance, power maintenance, electric maintenance, etc.)

Mechanical equipment (internal check of pipes, tanks, steel pipes, tubes, etc.)

Generators (Inspection for cracks on and abrasion of mechanical equipment, boilers, turbines, hydraulic pipes, etc.)

Welding (Inspection of welding on pipes, tanks, steel pipes, tubes, etc.)

General equipment (Internal check of various pipes)

Gas, petroleum, and chemicals (Internal Inspection of gas pipes, oil pipes, heat exchangers, etc.)

Electricity (Internal Inspection and diagnosis of power distributors, transformers, power equipment, etc.)

Manufacture (quality check of engine blocks, containers, LCDs, etc.)

Defense, security, and surveilliance (military, customs, police , firefighting, security companies)

Architecture (Construction engineering, upholstery, house repair, plumbing, ventilation, air condition, etc.)

Exploration, education, and research and experiments.











Insertion tube & Camera System



Image Sensor

Color Image Sensor

Resolution (Dynamic/Static)

325(H)*250(V) / 640(H)*480(V)

640(H)*480(V) / 640(H)*480(V) , JMVS series VGA probe only http://www.ome-top.com/en/new.gif" width="32" height="14">

Tip Diameter (mm)

Φ5.5mm

Length

30m

Light Source

4 High Brightness White LED (0~275Lux/4cm)

Field of View

Horizontal:46°, Vertical:34°, Diagonal:56

Depth of Field (DOF)

1cm~10cm

Housing

Stainless Steel

Material of Tube Connector

Military-standard Metal

Water and Oil Resistant

Insertion tube is water and oil resistant (IP67 Standard)

Working Temperature

0°C~80°C

Type of Insertion Tube

Soft-Metal

Accessories

3 side mirrors 70º/90º/110º
(Φ5.5mm, Non-articulating modes only)

Optional Accessories

Magnet, Hook, Climbing ball




Handle System



Dimension

139.3 * 34.9 * 31.8mm

Weight

0.220kg

Battery

Rechargeable Li-Polymer battery 3.7V

Brightness Control

Brightness Variable

Audio

Integrated microphone




Main Console System



Dimension

146.9 * 105.4 * 71mm

Weight

0.335kg

Power

Battery rechargeable Li-Polymer battery 3.7V
power supply AC 100-240V 50-60Hz
power consumption DC5.5 1.8A

Display

3.5 TFT LCD QVGA

Recording Medium

4GB SD Memory Card

Video Out Format

NTSC & PAL

Interface

AV out

Wireless Receiver Frequency

2.4GHz 4channels (2414MHz,

2432 MHz, 2450MHz, 2468MHz)

Compression Format

Compliant with MPEG4

Still Image Storage Format

JPEG (640*480)

Frame Rate

~30 fps

Exposure

Auto

White Balance

Fix

S/N Ratio

42dB or more

Language

27 Languages: English / French / German / Italian / Spanish / Portuguese / Japanese / Traditional Chinese / Simplified Chinese / Danish / Dutch / Polish / Russian / Bulgarian / Turkish / Swedish / Finnish / Norwegian /  Estonian / Lithuanian / Latvian / Hungarian / Czech / Slovak / Slovenian / Romanian / Greek

Recharge Temperature

0°C~40°C

Working Temperature

0°C~60°C

Storage Temperature

-20°C~60°C

Certificate

CE, FCC, ROHS

Package Size & Weight
 (ABS portable case with outer gift carton)

L42.5*W18*H40CM, GW:5KGS



OPTIONAL ITEMS:



CIA351X4



Carrier Bag - Sunshade. Protection. Easy Carry.

CIA351X1



HOLDING TUBE 990 DIAMETER: 8MM FOR HOLDING 6MM PROBE

CIA354X1



Roller for long probe
