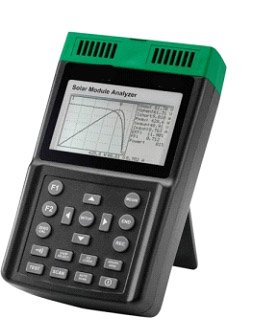

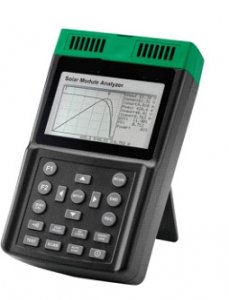

I-V Curve test for Solar Module
Auto-scan for Maximum Solar Power, Pmax: 85V, 8.5A
Maximum Voltage, Vmaxp, at Pmax
Maximum current, Imaxp, at Pmax
Voltage at open circuit, Vopen
Current at short circuit, Ishort
Best resolution: 1 mV, 1 mA
I-V curve with cursor
Calculation of Efficiency percentage
Manual single-point test
Optical USB Cable for PC or Laptop
Real-time datalogging programmable from 0 - 99min
Electrical Specifications: (23°C ± 5°C)
DC Voltage Measurement:
Range (85V / 8.5A) |
Resolution |
Accuracy |
0 - 10V |
0.001V |
±1% ±(1% of Vopen ±0.1V) |
10 - 85V |
0.01V |
±1% ±(1% of Vopen ±0.1V) |
Vopen: Open circuit voltage of solar cell or module
DC Current Measurement:
Range |
Resolution |
Accuracy |
0.01 - 8.5A |
1 mA |
± 1% ± (1% of Ishort ±9 mA) |
Ishort: Short circuit current of solar cell or module
DC Current Simulation:
Range |
Resolution |
Accuracy |
0.01 - 8.5A |
1 mA |
± 1% ± 9 mA |
General Specifications:
AC Adaptor |
Input: 110Vac or 240Vac |
Data Logging Memory |
100 Records |
Dimensions |
(257 x 155 x 57)mm (10.1" x 6.1" x 2.2") |
Weight |
1160g (batteries included), 2.5 lbs |
Operating environment |
0°C to 50°C, 85% RH |
Storage environment |
-20°C to 60°C, 75% RH |
Accessories included |
User's Manual, Software Manual, Software CD, Optical USB Cable, AC Adaptor, Lithium Battery, 1 set of Cables with Kelvin Clips, (12A max) |
Optional Accessories |
Model 300XP Printer |
Electrical Specifications: (23°C ± 5°C) DC Voltage Measurement:
Range (85V / 8.5A) |
Resolution |
Accuracy |
0 - 10V |
0.001V |
±1% ±(1% of Vopen ±0.1V) |
10 - 85V |
0.01V |
±1% ±(1% of Vopen ±0.1V) |
Vopen: Open circuit voltage of solar cell or module
DC Current Measurement:
Range |
Resolution |
Accuracy |
0.01 - 8.5A |
1 mA |
± 1% ± (1% of Ishort ±9 mA) |
Ishort: Short circuit current of solar cell or module
DC Current Simulation:
Range |
Resolution |
Accuracy |
0.01 - 8.5A |
1 mA |
± 1% ± 9 mA |
General Specifications:
|
Input: 110Vac or 240Vac Output: 15 Vdc (3A) |
AC Adaptor |
|
|
|
Data Logging Memory |
100 Records |
Dimensions |
(257 x 155 x 57)mm (10.1" x 6.1" x 2.2") |
Weight |
1160g (batteries included), 2.5 lbs |
Operating environment |
0°C to 50°C, 85% RH |
Storage environment |
-20°C to 60°C, 75% RH |
|
User's Manual, Software Manual, Software CD, Optical USB Cable, AC Adaptor, Lithium Battery, 1 set of Cables with Kelvin Clips, (12A max) |
Accessories included |
|
|
|
Optional Accessories |
Model 300XP Printer |
