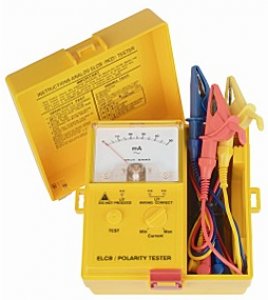

Sew 1810 EL

FEATURES
● Taut Band movement.
● Simple operation.
● Wiring check.
● Robust.
● Can be used on 2 wires L-E (ELCB/RCCB/GFCI tester).
● Can be used on 3 wires L-E-N (with wiring check).
● No battery required.
● Sense automatically 50 or 60 Hz.
● Current injected in phase with the voltage.
● Other voltage optional (110V).

  SPECIFICATIONS


Current settings 10-50mA@230Vac>
Current selection Knob
Frequency of
operation
50/60 Hz Sinusoidal
Over-Temperature
Protection
NO
Operating voltage (L-E) 230 Vac ±15%
Meter accuracy ±1% of full scale
Protection Fused (200mA 250V)
Operating temperature -5°C to 45°C
Storage temperature -10°C to 55°C
Dimensions 170(L) × 165(W) × 92(D)mm
Weight Approx. 730g
Safety standard EN 50081-1
EN 50082-1
